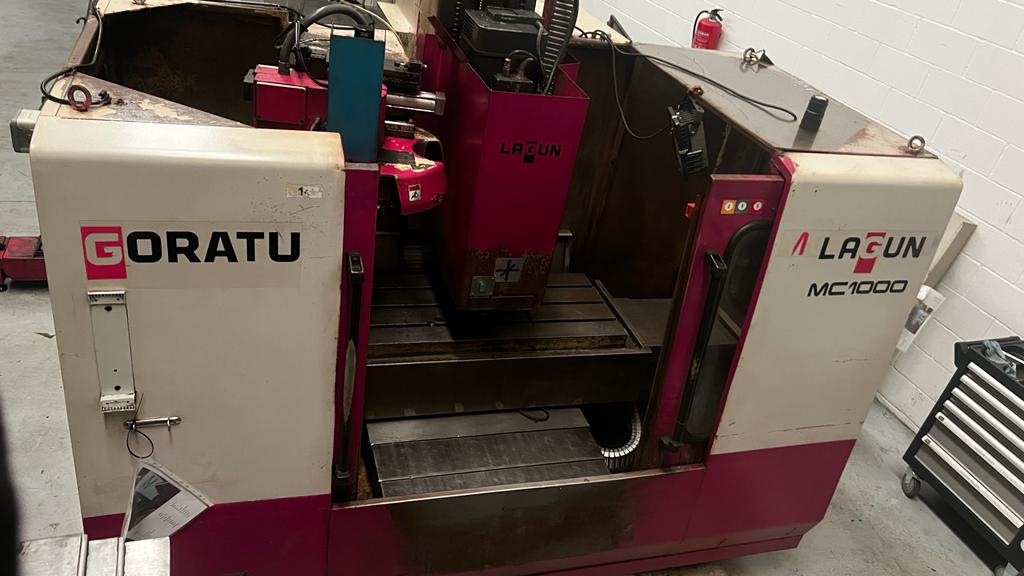

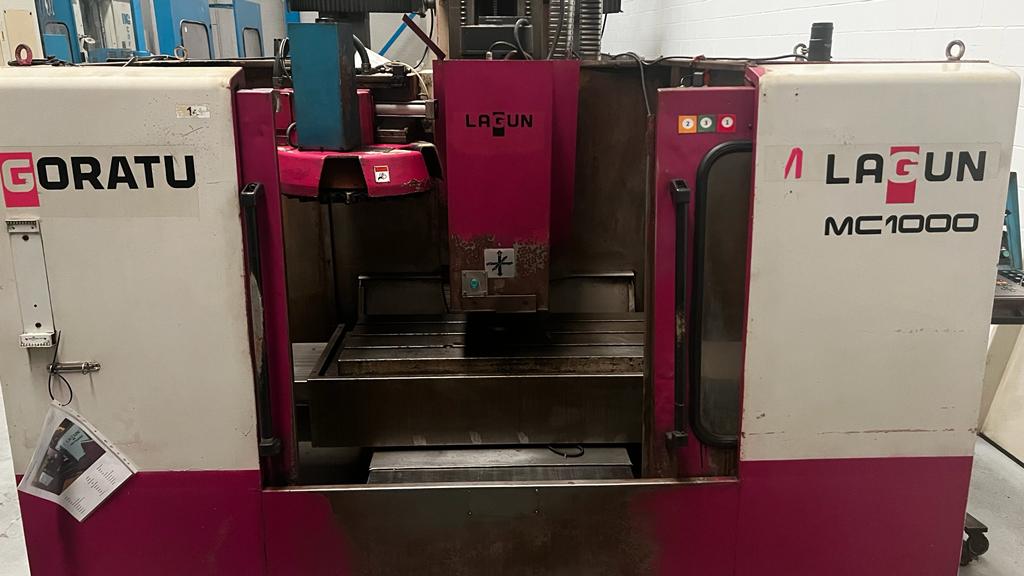

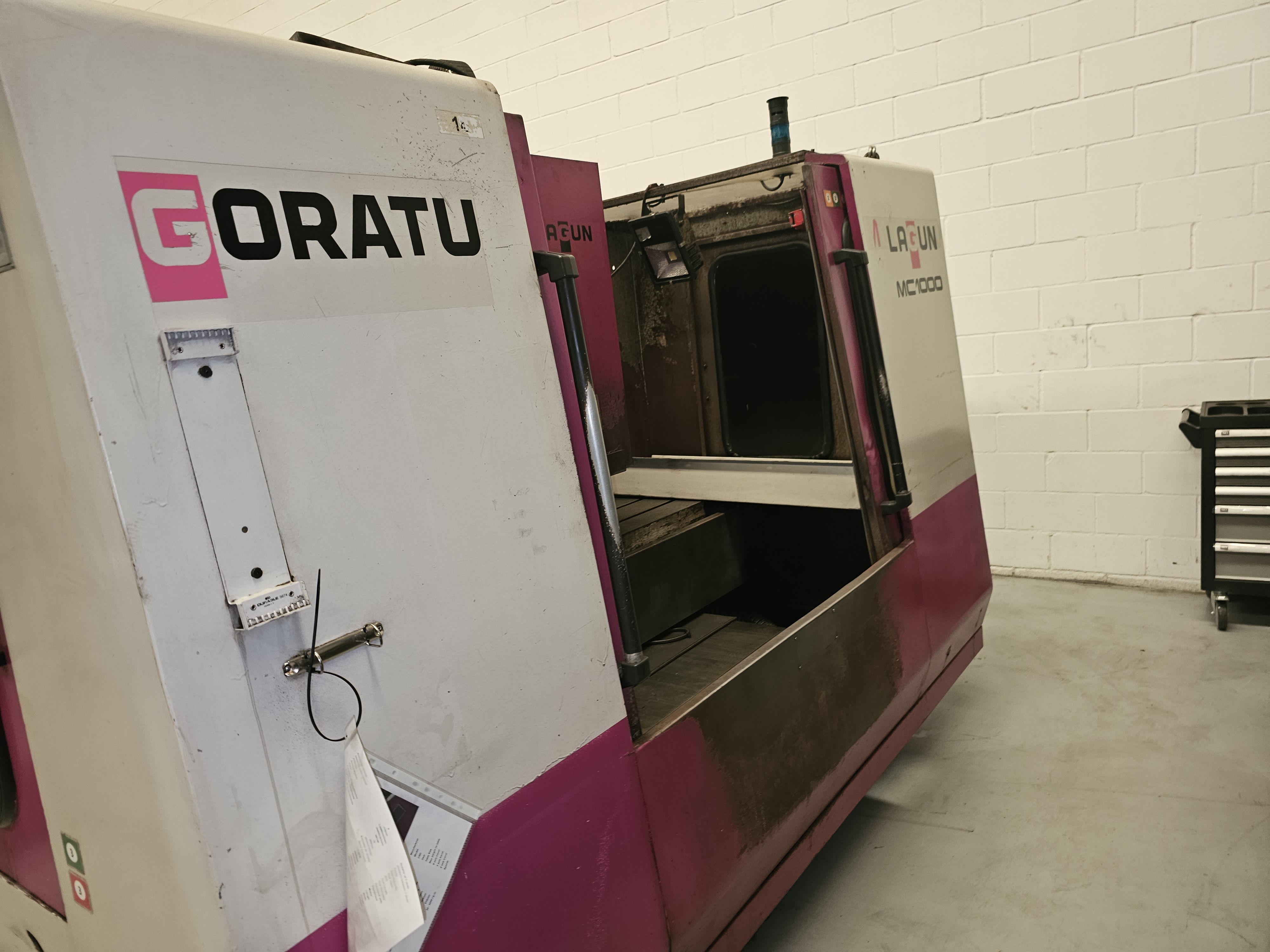

LAGUN MC1000

  • Machining Centres - Vertical Machining Centres
LAGUN MC1000
LAGUN MC1000
LAGUN MC1000
LAGUN MC1000
LAGUN MC1000
LAGUN MC1000

Machining Centres - Vertical Machining Centres

Ref 1001046

  • Year: 1998

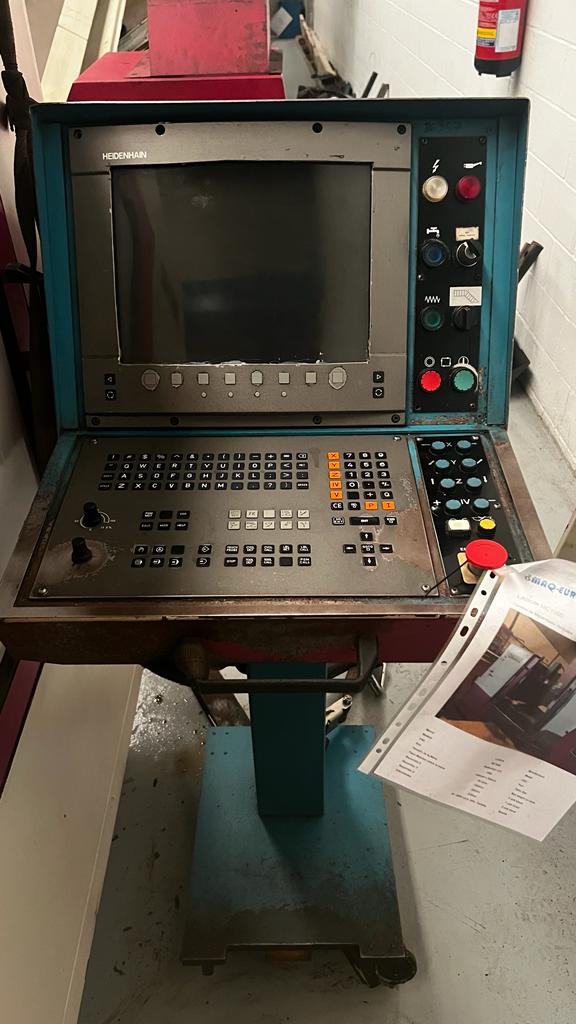

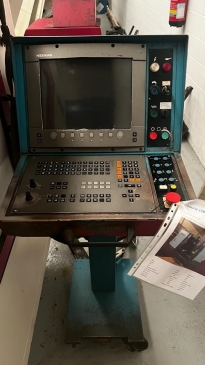

  • CNC: Heidenhain 410

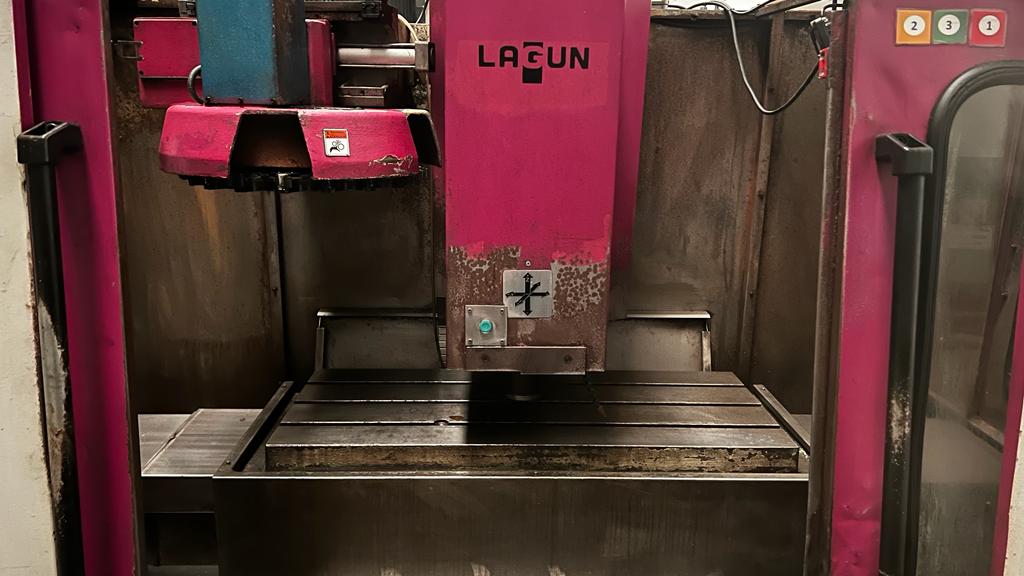

  • Table Size: 1200mm x 500mm
  • Max weight on table: 750 kilos
  • X axis travel: 1000mm
  • Y axis travel: 500mm
  • Z axis travel: 510mm
  • Speeds: 60 - 6000 r.p.m. Infin. Variable
  • Number of T slots: 3 x 20mm
  • Distance between T Slots: 115mm
  • Feeds: 1-5000mm/min.
  • Fast Traverse: 20000mm/min
  • Tool Taper: ISO40
  • ATC: 18
  • Tool Length: 250mm
  • Tool Diameter: 85mm / 135mm
  • Max. Tool weight: 6 kilos
  • ATC Time: 8 s.
  • Equipment: Swarf Conveyor
  • Motor: 11/13KW
  • Length: 2600mm
  • Width: 2250mm
  • Height: 2300mm
  • Weight: 5700 kilos
